ProteoxLX

Dry Systems
ProteoxLX Cryofree® dilution refrigerator for quantum computing scale-up.
Maximise qubit counts with large sample space and capacity for hundreds of coaxial lines
Quantum Computing scale up
Maximise superconducting qubit count with a larger area for customisable superconducting wiring and signal conditioning components
Superconducting qubits
Configure your system with high RF line counts, customisable wiring and optional superconducting magnets for experimental applications
Spin qubits
Download ProteoxLX Brochure

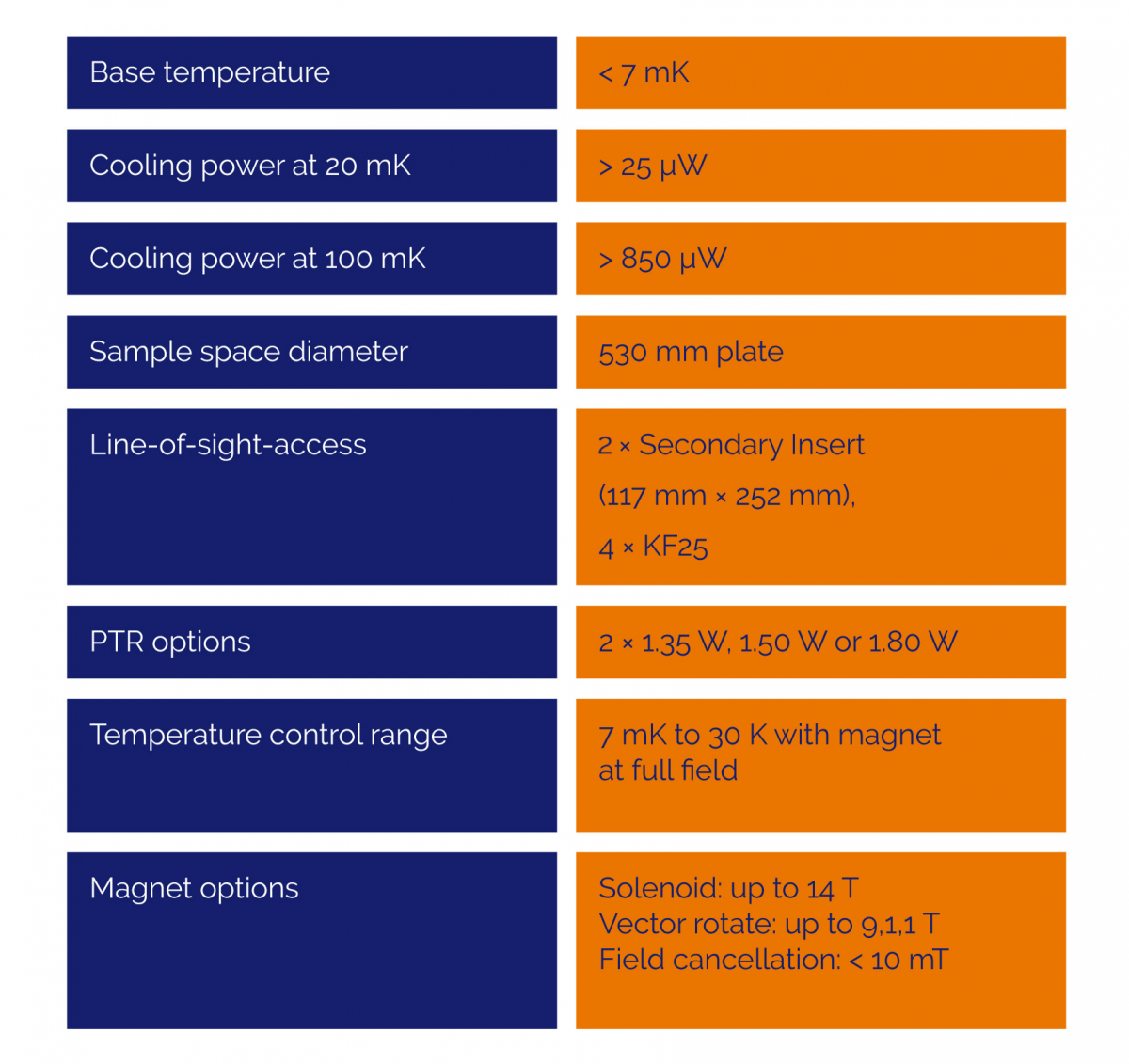

Key Specifications

Features

  • Maximise qubit counts with large sample space and capacity for coaxial lines, with up to a maximum of 256* SMA connectors per LX using the custom Secondary Insert
    • Get in touch to discuss higher density wiring options
  • Exceptional capacity for input and output lines and signal conditioning components.
  • Compatible with the Proteox dilution refrigerator Secondary Insert.
  • Low vibration features for reduced noise and support of long qubit coherence times.
  • Large cooling power with > 25 uW of cooling power available at 20 mK, low base temperature at < 7 mK and twin Pulse Tube Refrigerators (PTR) allows for several watts of dissipation at the 4 K plate (exceptional PTR damping).
ProteoxLX
Contact Sales Team

Platform Solution

Software

  • Remote access through a web-based, platform-independent control software in addition to local system control
  • Automation routines for one button operation
  • Full manual control and programmable API interface for custom routines
  • Powerful data interrogation and visualisation package with live plotting.

System

  • Fully redeveloped gas handling system to ensure the minimum number of connections and o-ring seals
  • Cross-braced stiffened frame that minimizes vibration transmission eliminating the need for active damping
  • Modular, upgradable platform with cross-compatible magnet systems.

Custom Secondary Insert

Ideal for a multi-user or multi-experiment setting, or future-proofing the system. Side loading Secondary Inserts can be exchanged between Proteox systems enabling experiments to be set up on a workbench prior to exchange. This is a significant advantage for optical experiments where alignment of components can be performed outside of the system.

Utilise a custom Secondary Insert for an optimised experiment, ready to run on system arrival by incorporating cold electronics such as circulators and amplifiers, directly during manufacture. All mounted hardware and components are factory installed.

  • Components mounted directly onto the Secondary Insert
  • Component bracketry factory installed
  • Amplifiers and isolators mounted in-line with coaxial cables for maximum space utilisation.
  • Up to a maximum of 128 SMA connectors per custom Secondary Insert
Find out more
Secondary Insert

Options / Accessories

Moving beyond standard access ports, the Secondary Insert can accommodate full experimental set-ups, including DC wiring, coaxial wiring and signal conditioning components.

  • Flexible, modular format enhances adaptability to varied application requirements
  • Large 117 mm × 252 mm rectangular LOS access port. This can be configured as a single customisable plate, or with 2 × ISO100 ports and a range of standard options
  • The Secondary Insert can be ordered with our patented bottom loading system as an option. This enables rapid sample exchange and can be coupled with magnet integration.


Standard options:

ISO100-2

A standard configuration of 2 x ISO100 ports, with multiple ISO100 options to provide experimental wiring.

  • Up to 37 UT85 coax per ISO100 port
  • Blanking plate option with tapped M3 grid array for mounting of experimental hardware.


Optional Blank Plates Instead Of SI

  • Blanking plate with tapped M3 grid array option if SI not required.


Custom Secondary Insert option:

Visit the Secondary Insert page

Flexible Wiring

  • 24-way twisted-pair DC looms with copper, constantan or NbTi conductors
  • Flexible coaxial (S1) wiring for use up to 500 MHz
  • Single-mode and multi-mode optical fibres
  • Thermo-coaxes for effective filtering of high-frequency noise
  • Low-impedance looms suitable for nano-positioning piezo devices.

Coaxial Wiring

  • UT34 and UT85 coax with SMA or SK connectors for 18 GHz or 40 GHz bandwidth operation
  • Range of coax conductors including stainless-steel, CuNi and NbTi
  • Heat sinking using bulkhead connectors at all experimental plates with optional 0 dB attenuators for efficient conductor thermalisation.

Attenuators

Attenuators can be selected per line and per plate; 0 dB attenuators for conductor thermalisation; 3 dB, 6 dB, 10 dB and 20 dB attenuators.

Low Pass Filters

Low-pass multi-stage filters can be mounted for use at temperatures to below 100 mK.

  • 4 cut-off frequencies available between 170 Hz and 110 kHz.
  • Gold plated copper chassis with RF gaskets to provide screening and thermal dumping for the filter PCB.
  • Easy Sample Loading Pucks without the need to warm the entire system to room temperature
  • Loading a sample puck takes < 15 minutes and the system automatically cools back to base temperature
  • Up to 28 RF and 96 DC connections on a single sample puck
  • Ideal solution for multi-user facilities since different experiments can be prepared in multiple sample pucks
  • Patented loading concept allows for safe and easy operation
  • ESD protection (make-before-break) via sample grounding or biasing before the puck docks with the system.

Our patented bottom loader and active gas gap heat switch technology enable fast sample turnaround times with sample puck cooldown times in less than 6 hours, particularly suited to magnet systems and for qubit screening. For the ProteoxMX, the sample loader is integrated onto a Secondary Insert, including hermetic feedthroughs and thermalisation hardware for provision of experimental wiring.

Solenoid Magnets

  • Range of field strengths from 1 T to 14 T
  • High filament count for reduced size, high sweep rate and low flux jumping
  • Large bore sizes from 77 mm to 152 mm diameter across the solenoid magnet range
  • All magnets ramp to full field in 1 hour or less
  • Quench protected.

Vector Rotate Magnets

  • 3 axis vector magnets with a vertical field up to 9 T and a horizontal field up to 3 T
  • 90 mm large bore across all high field vector rotate options.

Customised Magnets

  • Customised options for improved homogeneity, persistence stability or field resolution
  • Specialised capability for advanced magnet design including split pair and actively shielded magnet systems.
