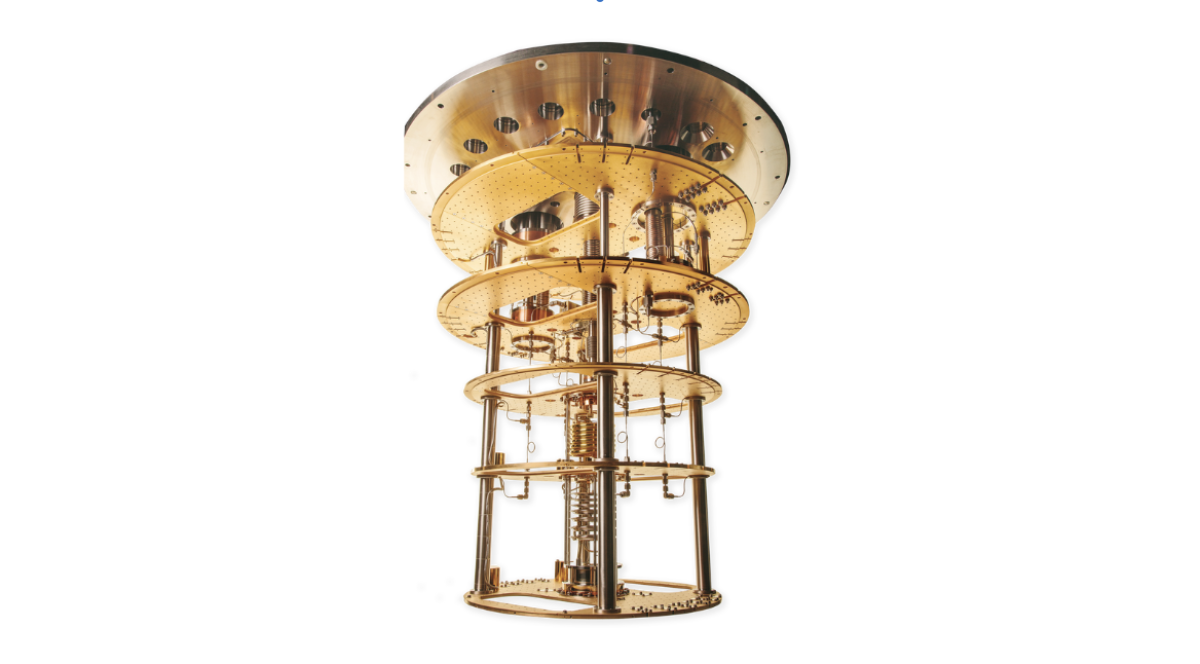

ProteoxMX

The modular Cryofree® ProteoxMX dilution refrigerator delivers greater experimental capacity and adaptability.

Integrate microwave lines and signal conditioning hardware on the Secondary Insert for superconducting qubit development.

Superconducting Qubits

Integrate microwave wiring, cold electronics and superconducting magnets for spin qubit development.

Spin Qubits

Superconducting magnets and ultra low temperatures enable hall effect and quantum hall effect transport measurements.

Quantum Transport Measurements

Download Proteox Brochure

Key Specifications

Features

Enables high input/output applications through abundant line-of-sight (LOS) access, with up to a maximum of 128* SMA connectors on a custom Secondary Insert
- Get in touch to discuss higher density wiring options!
Large 360 mm diameter mixing chamber plate, combined with increased spacing
Customisable, self-supporting Secondary Insert
DC wiring, coaxial wiring, cold electronic components and samples can be fully integrated on to multiple Secondary Inserts
Patented gas gap heat switch technology provides active control of thermal conductivity between the system plates
New gas handling system delivers increased reliability and longer service intervals.

Contact Sales Team

Platform Solutions

Software

Remote access through a web-based, platform-independent control software in addition to local system control
Automation routines for one button operation
Full manual control and programmable API interface for custom routines
Powerful data interrogation and visualisation package with live plotting

System

Fully redeveloped gas handling system to ensure the minimum number of connections and o-ring seals
Cross-braced stiffened frame that minimizes vibration transmission eliminating the need for active damping
Modular, upgradable platform with cross-compatible magnet systems

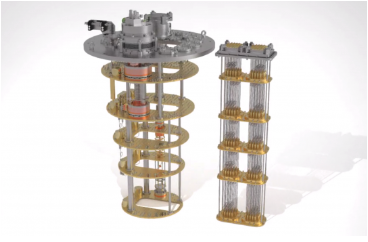

Custom Secondary Insert

Ideal for a multi-user or multi-experiment setting, or future-proofing the system. Side loading Secondary Inserts can be exchanged between Proteox systems enabling experiments to be set up on a workbench prior to exchange. This is a significant advantage for optical experiments where alignment of components can be performed outside of the system.

Utilise a custom Secondary Insert for an optimised experiment, ready to run on system arrival by incorporating cold electronics such as circulators and amplifiers, directly during manufacture. All mounted hardware and components are factory installed.

Components mounted directly onto the Secondary Insert
Component bracketry factory installed
Amplifiers and isolators mounted in-line with coaxial cables for maximum space utilisation
Up to a maximum of 128 SMA connectors per custom Secondary Insert

Visit the Secondary Insert page Visit the image library for more customised inserts!

Options / Accessories

Moving beyond standard access ports, the Secondary Insert can accommodate full experimental set-ups, including DC wiring, coaxial wiring and signal conditioning components.

Flexible, modular format enhances adaptability to varied application requirements
Large 117 mm × 252 mm rectangular LOS access port. This can be configured as a single customisable plate, or with 2 × ISO100 ports and a range of standard options
The Secondary Insert can be ordered with our patented bottom loading system as an option. This enables rapid sample exchange and can be coupled with magnet integration.

Standard options:

ISO100-2

A standard configuration of 2 x ISO100 ports, with multiple ISO100 options to provide experimental wiring.

Up to 37 UT85 coax per ISO100 port
Blanking plate option with tapped M3 grid array for mounting of experimental hardware.

BLL-60

A Secondary Insert for fast sample exchange with a cold finger assembly to suit the 60 mm sample exchange puck.

BLL-72

A Secondary Insert for fast sample exchange with a cold finger assembly to suit the 72 mm sample exchange puck.

Optional Blank Plates Instead Of SI

Blanking plate with tapped M3 grid array option if SI not required.

Custom Secondary Insert option:

Customise an entire Secondary Insert for your specific experimental needs

Visit the Secondary Insert page!

Flexible Wiring

24-way twisted-pair DC looms with copper, constantan or NbTi conductors
Flexible coaxial (S1) wiring for DC or low frequency
Single-mode and multi-mode optical fibres
Thermo-coaxes for effective filtering of high-frequency noise
Low-impedance looms suitable for nano-positioning piezo devices.

Coaxial Wiring

UT34 and UT85 coax with SMA or SK connectors for 18 GHz or 40 GHz bandwidth operation
Range of coax conductors including stainless-steel, CuNi and NbTi
Heat sinking using bulkhead connectors at all experimental plates with optional 0 dB attenuators for efficient conductor thermalisation.

Attenuators

Attenuators can be selected per line and per plate; 0 dB attenuators for conductor thermalisation; 3 dB, 6 dB, 10 dB and 20 dB attenuators.

Low Pass Filters

Low-pass multi-stage filters can be mounted for use at temperatures to below 100 mK.

4 cut-off frequencies available between 170 Hz and 110 kHz.
Gold plated copper chassis with RF gaskets to provide screening and thermal dumping for the filter PCB.

Our patented bottom loader and active gas gap heat switch technology enable fast sample turnaround times with sample puck cooldown times in less than 6 hours, particularly suited to magnet systems and for qubit screening. For the ProteoxMX, the sample loader is integrated onto a Secondary Insert, including hermetic feedthroughs and thermalisation hardware for provision of experimental wiring.

Easy sample exchange without the need to warm the entire system to room temperature
Loading a sample puck takes < 15 minutes and the system automatically cools back to base temperature
Up to 28 RF and 96 DC connections on a single sample puck
Ideal solution for multi-user facilities since different experiments can be prepared in multiple sample pucks
Patented loading concept allows for safe and easy operation
ESD protection (make-before-break) via sample grounding or biasing before the puck docks with the system.

Solenoid Magnets

Range of field strengths from 1 T to 14 T
High filament count for reduced size, high sweep rate and low flux jumping
Large bore sizes from 77 mm to 152 mm diameter across the solenoid magnet range
Maximum sweep rate of 2 Amp/minute
Quench protected.

Vector Rotate Magnets

3 axis vector magnets with a vertical field up to 9 T and a horizontal field up to 3 T
90 mm large bore across all high field vector rotate options.

Customised Magnets

Customised options for improved homogeneity, persistence stability or field resolution
Specialised capability for advanced magnet design including split pair and actively shielded magnet systems.
