KelvinoxJT

Wet Systems

Dry Systems

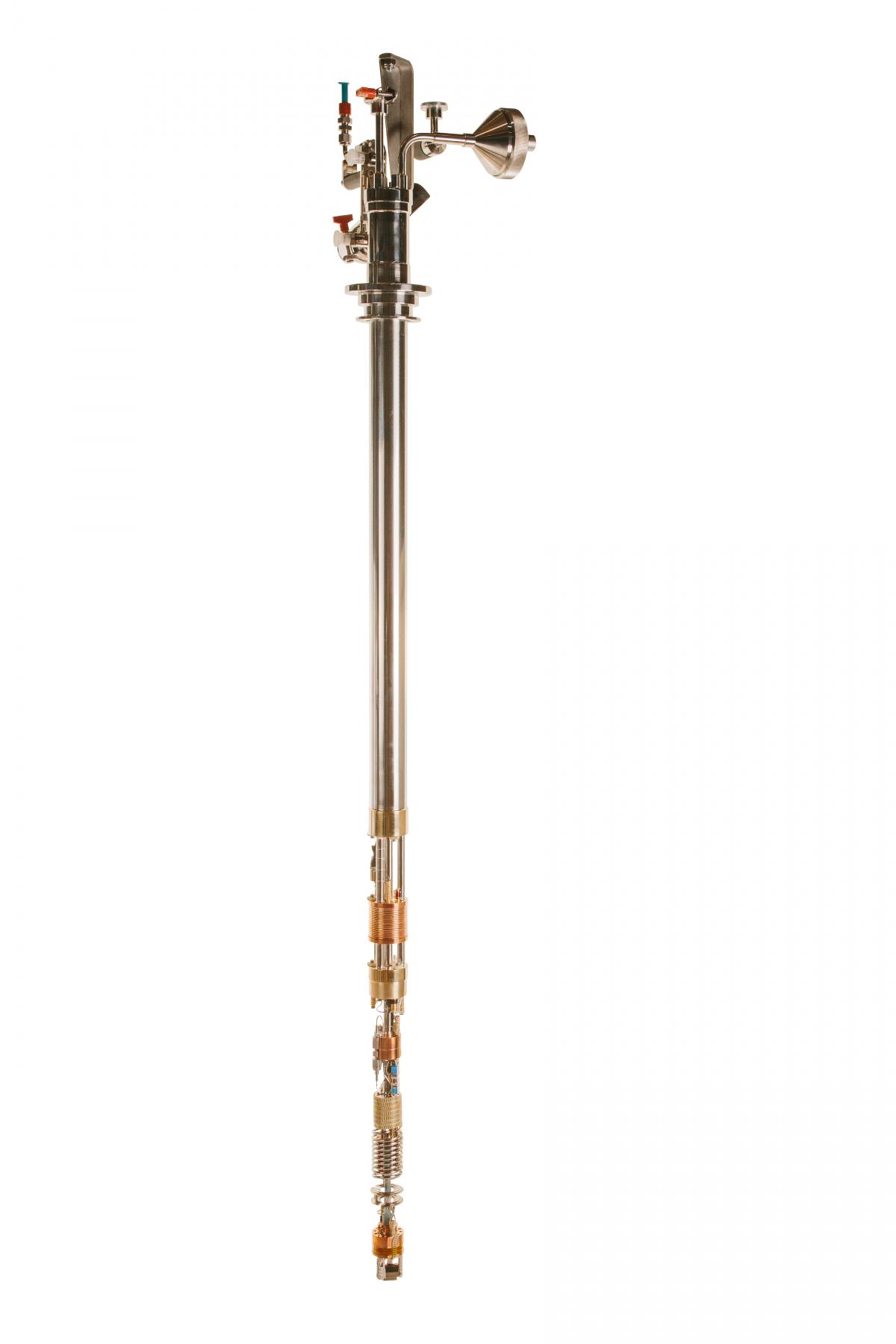

A dipstick-style dilution refrigerator insert using Joule-Thomson condensation compatible with wet or dry cryostats.

High magnetic fields and low temperatures for hall effect and quantum hall effect measurements.

Electrical Transport Measurements

Investigate the effect of low temperature and high field on low dimensional materials; nanowires, nanotubes, quantum dots and 2d electron gases.

Low Dimensional Physics

Spin processing and data storage studies using high magnetic fields and low temperatures.

Spintronics

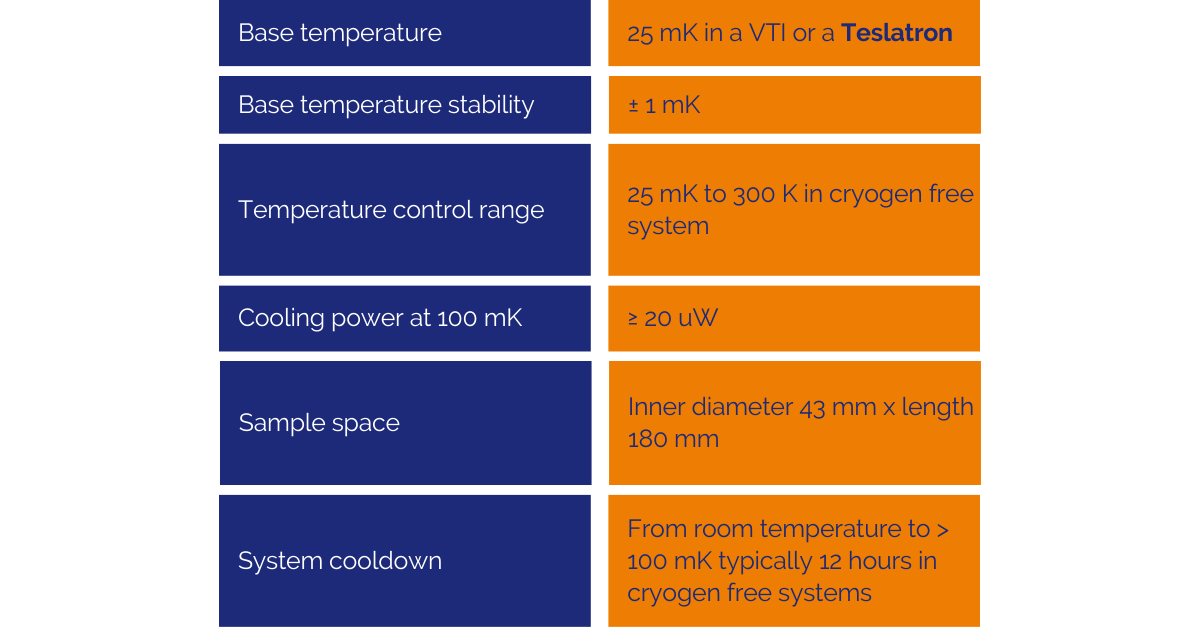

Key Specifications

Note: The KelvinoxJT must be configured for either wet or dry systems. It is not cross-compatible once configured.

Features

Compatible with our Cryofree^® TeslatronPT, our wet Integra magnet systems, any liquid helium transport dewar or any VTI with a sample tube diameter of at least 50 mm.
Automated gas handling system with software for data visualisation and remote control.
Inner vacuum chamber (IVC) with automatic exchange gas control.
The IVC is sealed using vacuum grease or CAF paste (no Indium is required).
One spare 6 mm line-of-sight port for installing experimental wiring.

Options / Accessories

DC and RF Wiring

Flexible coax option

Two flexible S1 stainless steel coaxial cables, from room temperature to the mixing chamber, suitable for low frequencies
Suitable for signals up to MHz frequency
Fisher connector at room temperature.

DC Wiring Option

24-way constantan loom with 12 twisted pairs wired to the mixing chamber
24-way Fisher connector at room temperature.
